Convection is a mode of heat transfer that involves the movement of fluid (liquid or gas) caused by temperature-induced density differences within the fluid. It is a key mechanism in various natural and engineered systems, from ocean currents and weather patterns to heating and cooling applications in homes and industrial processes. Convection occurs when warmer, less dense fluid rises and cooler, denser fluid sinks, creating a circulation pattern that transfers heat efficiently within the system.
In this article, we’ll explore the concept of convection, discuss its types, examine the principles that govern it, and look at real-world applications and examples.
1. Understanding Convection and Heat Transfer
Heat transfer occurs via three main mechanisms: conduction, convection, and radiation. Convection specifically involves the movement of fluid, which distinguishes it from conduction (heat transfer through a solid without mass movement) and radiation (heat transfer via electromagnetic waves).
In convection, temperature differences within a fluid cause variations in density, leading to movement within the fluid. As fluid warms up, it becomes less dense and rises, while cooler, denser fluid sinks. This circulation process transfers heat from warmer to cooler areas, allowing for efficient heat distribution.
Example:

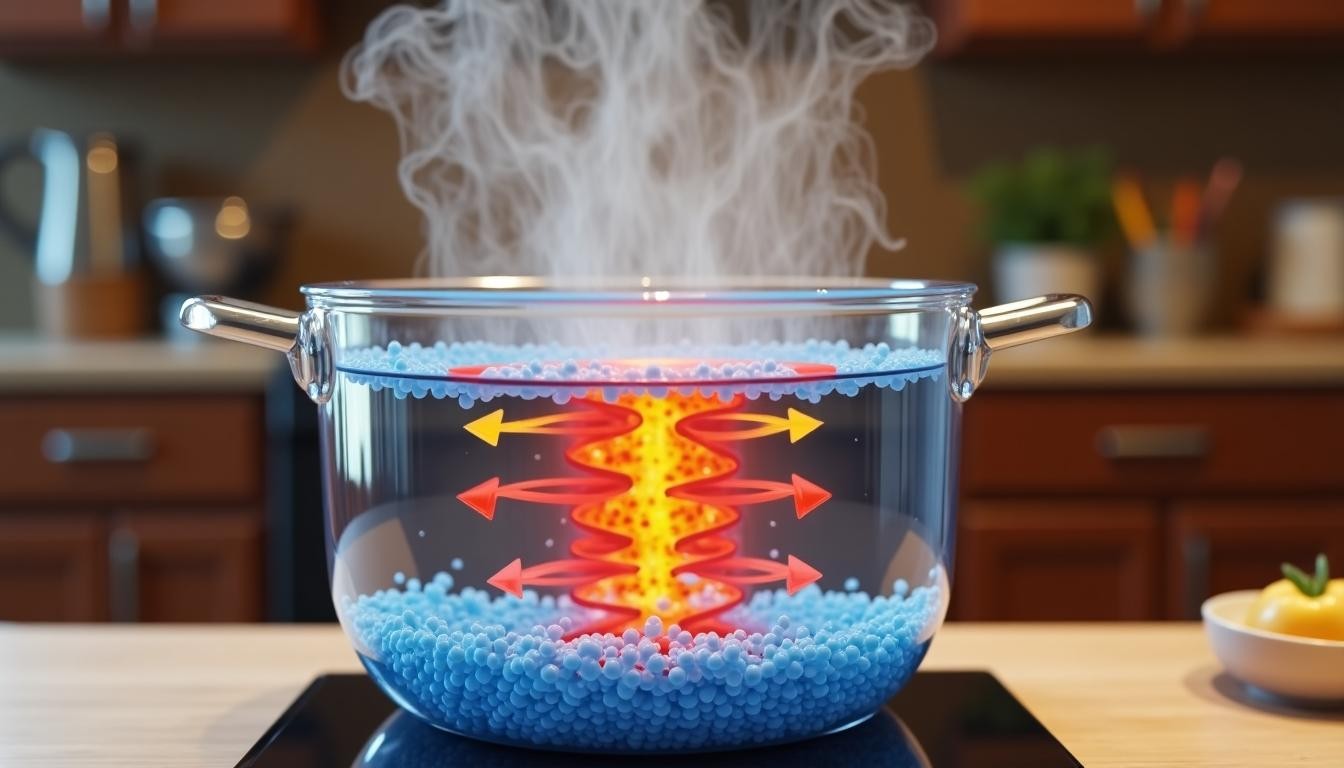

Consider a pot of water heating on a stove. As the water at the bottom of the pot warms up, it becomes less dense and rises to the surface. Meanwhile, cooler water from the top sinks to the bottom, creating a circular flow pattern. This continuous motion transfers heat from the stove to all parts of the water, eventually heating it evenly.
2. Types of Convection
There are two main types of convection: natural (or free) convection and forced (or induced) convection. These types differ based on the mechanism that initiates fluid motion.
a. Natural Convection
In natural convection, the movement of fluid is driven by temperature-induced density differences alone, with no external force applied. Natural convection is commonly observed in systems where the fluid is exposed to a temperature gradient, such as the heating of air near a radiator or the cooling of water in a lake.
Example:
When air is heated by a radiator in a room, the warm air near the radiator becomes less dense and rises, while cooler air in the room sinks toward the floor. This creates a natural circulation pattern that distributes heat, warming the room without the use of fans or other external devices.
b. Forced Convection
In forced convection, an external force such as a pump, fan, or blower moves the fluid. Forced convection is commonly used in engineering applications where faster or more efficient heat transfer is needed, such as in car engines, air conditioning systems, and industrial cooling.
Example:
A ceiling fan accelerates air circulation in a room, improving heat distribution and making the room feel cooler by increasing the rate of air movement. In this case, the fan forces the convection process, promoting the transfer of heat away from occupants, who feel cooler as a result.
3. Principles Governing Convection
Convection is governed by key principles in thermodynamics and fluid dynamics, particularly density variations, buoyancy, and the temperature gradient within the fluid. Understanding these principles helps explain why and how convection occurs in both natural and engineered systems.
a. Density and Buoyancy
In any fluid, temperature affects density, with warmer fluid generally becoming less dense and cooler fluid more dense. According to Archimedes’ Principle, when a fluid element is less dense than its surroundings, it experiences an upward buoyant force, causing it to rise. This buoyant effect is what drives natural convection.
Example:
Hot air balloons rely on the principle of buoyancy. As the air inside the balloon is heated, it becomes less dense than the cooler outside air, creating lift and causing the balloon to rise. Once the air cools, it becomes denser, and the balloon descends.
b. Temperature Gradient and Thermal Boundary Layers
The temperature gradient within a fluid dictates how heat moves from one area to another. When there’s a temperature difference across a fluid, a thermal boundary layer forms near the heated surface, with temperature gradually decreasing from the hot surface to the cooler surrounding fluid. This gradient is essential for establishing the convective flow pattern within the fluid.
In forced convection, engineers can control the temperature gradient and thermal boundary layer thickness by adjusting flow speed and temperature, thus regulating the rate of heat transfer.
4. Mathematical Analysis of Convection: The Heat Equation and Nusselt Number
To quantify heat transfer via convection, scientists and engineers use mathematical models and dimensionless numbers that capture the dynamics of fluid movement and heat exchange.
a. The Heat Equation for Convection
The heat equation in convection is represented by Newton’s Law of Cooling:
![\[ Q = hA(T_s - T_f) \]](https://www.sridianti.com/wp-content/uploads/2024/10/quicklatex.com-69bdf69e3ce29e61949d1127bfbdd572_l3.png "Rendered by QuickLaTeX.com")
where:
- Q is the heat transfer rate,
- h is the convective heat transfer coefficient,
- A is the surface area through which heat is transferred,
- T_s is the surface temperature, and
- T_f is the fluid temperature.
The convective heat transfer coefficient (h) is a crucial factor that depends on the type of fluid, flow conditions, and temperature. It reflects how efficiently heat is transferred from a solid surface to a fluid or vice versa.
b. Nusselt Number (Nu)
The Nusselt Number (Nu) is a dimensionless number that characterizes the efficiency of heat transfer in convective processes. It compares convective heat transfer to conductive heat transfer and is defined as:
![\[ \text{Nu} = \frac{hL}{k} \]](https://www.sridianti.com/wp-content/uploads/2024/10/quicklatex.com-dfe61d5fd723c6545aaa250937a80b18_l3.png "Rendered by QuickLaTeX.com")
where:
- h is the convective heat transfer coefficient,
- L is the characteristic length of the surface,
- k is the thermal conductivity of the fluid.
A higher Nusselt number indicates more effective convective heat transfer. Engineers often use the Nusselt number to design efficient heating and cooling systems by optimizing convective heat transfer.
5. Convection in Natural Processes
Convection is a vital mechanism in many natural phenomena, contributing to the formation of weather patterns, ocean currents, and even geological processes.
a. Atmospheric Convection and Weather Patterns
Atmospheric convection plays a significant role in shaping weather patterns. When the Earth’s surface is heated by the sun, the air close to the surface warms, becomes less dense, and rises. As it ascends, it cools, eventually sinking back down. This convective motion drives the formation of clouds, wind currents, and storms.
Example:
The sea breeze is an example of convection in coastal areas. During the day, land heats up faster than water, causing warm air over the land to rise and cooler air from the sea to move in. This creates a breeze from the sea toward the land. At night, the reverse can occur as the land cools faster than the sea, creating a breeze from the land toward the sea.
b. Ocean Currents and Global Climate
Ocean convection currents, driven by temperature and salinity differences, significantly influence global climate by distributing heat. Warm water from the equator moves toward the poles, while cold water from the poles moves toward the equator, creating a thermohaline circulation.
Example:
The Gulf Stream is a warm Atlantic Ocean current that transports warm water from the Gulf of Mexico to the North Atlantic. This warm water influences the climate of Western Europe, making it milder than other regions at similar latitudes.
c. Mantle Convection and Plate Tectonics
Within the Earth, mantle convection is responsible for the movement of tectonic plates. Heat from the Earth’s core causes magma in the mantle to rise, where it eventually cools and sinks. This convection cycle drives plate tectonics, leading to the formation of mountains, earthquakes, and volcanic activity.
Example:
The mid-Atlantic Ridge is a result of mantle convection, where two tectonic plates are slowly moving apart due to convective currents within the Earth’s mantle. As magma rises to the surface, it forms new crust, causing the plates to drift over time.
6. Applications of Convection in Engineering and Technology
Convection is extensively utilized in engineering and technology for heating and cooling systems, as well as in processes requiring efficient heat transfer.
a. Heating and Cooling Systems
In HVAC (heating, ventilation, and air conditioning) systems, convection is central to achieving thermal comfort. Forced convection, using fans and blowers, circulates warm or cool air within buildings, providing an even temperature distribution.
Example:
In a central heating system, a furnace heats air, which is then blown through ducts and distributed throughout a building. The forced convection created by fans ensures that the warm air circulates, warming all rooms efficiently.
b. Cooling of Electronic Components
Convection is crucial in cooling electronic devices, such as computer processors and servers, which generate significant amounts of heat. Fans and heat sinks are commonly used to enhance forced convection and dissipate heat.
Example:
In a computer, a fan forces air across the processor’s heat sink, increasing convective heat transfer and preventing the processor from overheating. This forced convection keeps the electronic components within safe operating temperatures, prolonging their lifespan.
c. Industrial Heat Exchangers
Heat exchangers rely heavily on forced convection to transfer heat between two fluids efficiently. Industries like chemical processing, power generation, and refrigeration depend on heat exchangers for efficient energy transfer.
Example:
In a shell-and-tube heat exchanger, hot fluid flows through tubes while cold fluid circulates around them. Forced convection within both fluids enables efficient heat transfer, cooling the hot fluid and heating the cold fluid, with applications in industrial and environmental systems.
7. Convection in Daily Life
Convection is present in many everyday situations, from cooking and heating to natural breezes.
a. Cooking
Convection ovens are widely used to cook food by circulating hot air. The constant flow of heated air cooks food more evenly and reduces cooking time, creating more consistent results than traditional ovens.
Example:
In a convection oven, fans circulate hot air around the food, ensuring that all sides receive the same level of heat. This is particularly useful for baking pastries or roasting meats, where even heating is crucial for ideal texture and taste.
b. Domestic Heating
Space heaters and radiators rely on convection to warm rooms. Heated air rises from the radiator, while cooler air sinks, setting up a convective current that circulates warm air throughout the room.
Example:
In a room with a radiator, the air closest to the radiator warms up and rises. As it cools, it sinks, creating a circulation pattern that helps distribute heat evenly without the need for additional fans or blowers.
Conclusion
Convection is a powerful and efficient heat transfer mechanism that plays a crucial role in natural and engineered systems. By understanding convection’s principles, including the effects of density, buoyancy, and temperature gradients, we gain insights into numerous phenomena, from atmospheric and ocean currents to industrial applications and household heating. Whether it’s distributing warmth in a room, cooling electronic devices, or shaping global weather patterns, convection provides a reliable method for transferring heat, demonstrating its versatility and impact across a range of disciplines and daily activities.
