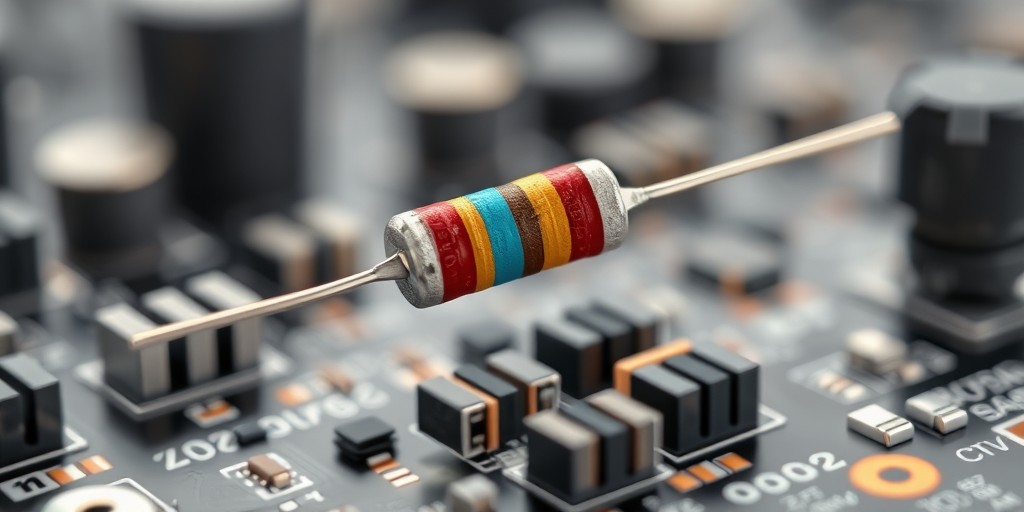

A resistor is an electrical component that limits or regulates the flow of electric current in a circuit. By offering resistance, it converts electrical energy into heat and controls the current to ensure safe and efficient operation of electronic devices. Resistors are fundamental components in electrical and electronic engineering, widely used to adjust signal levels, divide voltages, and protect sensitive components.

The resistance of a resistor is measured in ohms ( $\Omega$ ), and it obeys Ohm’s Law, which relates voltage ( $V$ ), current ( $I$ ), and resistance ( $R$ ):

$V = I \cdot R$

This article explores the working principle, types, and applications of resistors, with examples to illustrate their significance in circuits.

—

How Resistors Work

A resistor works by opposing the flow of electrons through its material, which generates heat as electrical energy is dissipated. The level of opposition depends on the material’s properties and the resistor’s design.

Ohm’s Law in Action

Ohm’s Law explains how resistors regulate current. For a given resistance $R$ , the current $I$ through a resistor depends on the voltage $V$ applied across it:

$I = \frac{V}{R}$

Example:
If a resistor with $R = 100 \, \Omega$ is connected to a $10 \, \text{V}$ power source, the current through it is:

$I = \frac{10}{100} = 0.1 \, \text{A}.$

—

Types of Resistors

Resistors come in various types, designed for specific purposes in electrical circuits. They can be broadly categorized into fixed and variable resistors.

1. Fixed Resistors

Fixed resistors have a constant resistance value and are the most common type. They are used in circuits where precise resistance is needed.

Carbon Composition Resistors

Made from a mixture of carbon powder and a binding material, these resistors are inexpensive but less precise.

Example:
Used in older electronic devices for basic current control.

Metal Film Resistors

These resistors have a thin metal layer as the resistive element, offering higher precision and stability.

Example:
Commonly found in audio equipment for minimizing noise.

Wire-Wound Resistors

Constructed by winding a wire around an insulating core, these resistors handle high power.

Example:
Used in power supplies and motor control circuits.

—

2. Variable Resistors

Variable resistors allow the resistance to be adjusted manually or automatically, providing flexibility in circuit design.

Potentiometers

A potentiometer is a three-terminal device with an adjustable knob or slider to change resistance.

Example:
Used in volume controls for audio devices.

Rheostats

Rheostats are two-terminal variable resistors used for adjusting current.

Example:
Used in laboratory equipment to vary the intensity of light or heat.

Digital Resistors

Controlled electronically, digital resistors adjust resistance in response to digital signals.

Example:
Found in programmable electronic devices for dynamic resistance control.

—

Key Characteristics of Resistors

Several characteristics define how resistors behave in a circuit:

1. Resistance Value

The resistance value is the primary specification, usually marked on the resistor using a color code or printed directly.

Example:
A resistor with a red, violet, and brown color band has a resistance of $270 \, \Omega$ .

2. Tolerance

Tolerance indicates the precision of the resistor’s resistance, expressed as a percentage of its nominal value.

Example:
A resistor with $100 \, \Omega$ and $\pm 5\%$ tolerance may vary between $95 \, \Omega$ and $105 \, \Omega$ .

3. Power Rating

The power rating specifies the maximum power a resistor can dissipate without damage, measured in watts (W).

Example:
A $1/4 \, \text{W}$ resistor can safely dissipate $0.25 \, \text{W}$ .

—

Resistors in Series and Parallel Circuits

Resistors are often connected in series, parallel, or a combination of both to achieve desired resistance levels.

1. Resistors in Series

In a series configuration, the total resistance is the sum of individual resistances:

$R_{\text{total}} = R_1 + R_2 + R_3 + \ldots$

Example:
For three resistors ( $R_1 = 10 \, \Omega$ , $R_2 = 20 \, \Omega$ , $R_3 = 30 \, \Omega$ ) connected in series:

$R_{\text{total}} = 10 + 20 + 30 = 60 \, \Omega.$

2. Resistors in Parallel

In a parallel configuration, the reciprocal of the total resistance is the sum of the reciprocals of individual resistances:

$\frac{1}{R_{\text{total}}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} + \ldots$

Example:
For three resistors ( $R_1 = 10 \, \Omega$ , $R_2 = 20 \, \Omega$ , $R_3 = 30 \, \Omega$ ) connected in parallel:

$\frac{1}{R_{\text{total}}} = \frac{1}{10} + \frac{1}{20} + \frac{1}{30} = 0.1 + 0.05 + 0.0333 = 0.1833,$

$R_{\text{total}} \approx 5.46 \, \Omega.$

—

Applications of Resistors

Resistors are indispensable in electronics, serving various functions across a range of devices and systems.

1. Current Limiting

Resistors control the amount of current flowing through sensitive components to prevent damage.

Example:
In LED circuits, resistors limit current to ensure the LED operates safely.

2. Voltage Division

Resistors divide voltage in a circuit, creating specific voltage levels for different components.

Example:
A voltage divider circuit uses two resistors to reduce a 12V input to 5V for powering a microcontroller.

3. Signal Conditioning

Resistors adjust and shape electrical signals in amplifiers and communication systems.

Example:
In audio equipment, resistors ensure consistent signal levels for clear sound reproduction.

4. Heat Generation

In some cases, resistors are used intentionally to convert electrical energy into heat.

Example:
Electric heaters use wire-wound resistors to produce heat for warming spaces.

5. Pull-Up and Pull-Down Resistors

Pull-up and pull-down resistors stabilize input signals in digital circuits by preventing floating states.

Example:
In a microcontroller circuit, a pull-up resistor ensures a button press produces a clear HIGH signal.

—

Limitations of Resistors

While resistors are essential, they also have limitations:

1. Power Dissipation: Excessive current can cause resistors to overheat and fail.
2. Noise: Resistors can introduce electrical noise in sensitive circuits.
3. Temperature Dependence: Resistance values may change with temperature, affecting precision.

Example:
A resistor in a high-power circuit might require heat sinks to dissipate excess heat and prevent damage.

—

Real-World Examples of Resistors in Use

Example 1: LED Circuit

In an LED circuit, a resistor prevents excessive current from damaging the LED. For a $3 \, \text{V}$ LED operating at $20 \, \text{mA}$ and powered by a $5 \, \text{V}$ source:

$R = \frac{V_{\text{source}} - V_{\text{LED}}}{I} = \frac{5 - 3}{0.02} = 100 \, \Omega.$

A $100 \, \Omega$ resistor is added in series with the LED.

—

Example 2: Laptop Charger

In a laptop charger, resistors control voltage and current to ensure safe charging. Precision resistors in the circuit monitor and regulate power output.

—

Example 3: Sensors

Resistors are used in sensors to convert physical quantities like temperature or light intensity into measurable electrical signals.

Example:
In a thermistor-based temperature sensor, the resistance changes with temperature, allowing accurate temperature readings.

—

Conclusion

Resistors are one of the most fundamental and versatile components in electrical and electronic circuits. By controlling current, dividing voltage, and shaping signals, resistors enable the safe and efficient operation of countless devices and systems. From simple LED circuits to advanced communication networks, resistors play a critical role in modern technology, demonstrating their importance across a wide range of applications.
